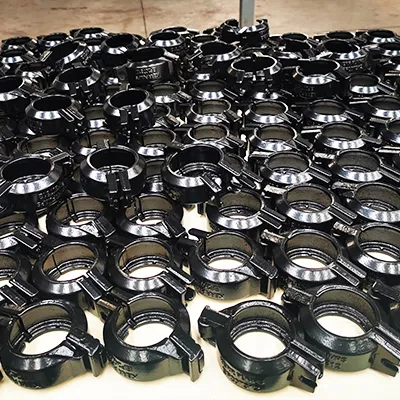

  • Pipe Clamp, 2 kgPipe Clamp, 2 kg

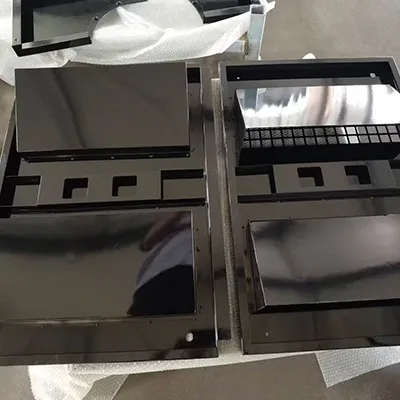

  • Equipment Enclosure, 30 kgEquipment Enclosure, 30 kg

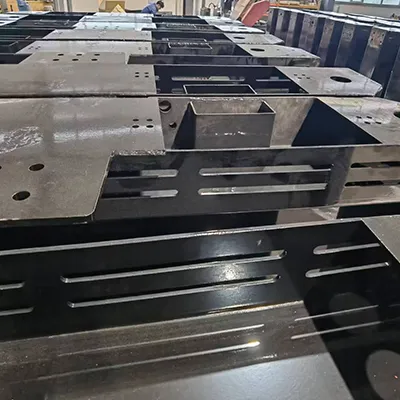

  • Water Pump Base, 300 kgWater Pump Base, 300 kg

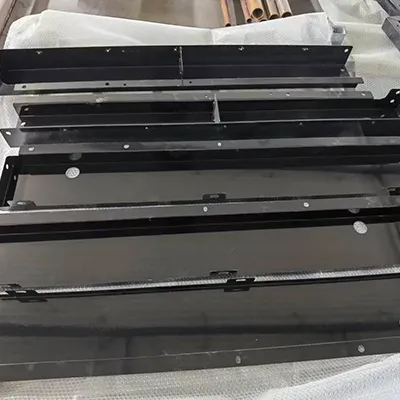

  • Equipment Housing, 20 kgEquipment Housing, 20 kg
Contact Us

Powder Coating uses electrostatic attraction to apply a solid powder coating to the metal surface, which is then cured by high-temperature baking to form a hard, corrosion-resistant, scratch-resistant protective film. The process is solvent-free, making it clean, environmentally friendly, and it is widely applied to steel structures and hardware.

In addition to black, we offer a variety of powder-coated finishes, including red, green, and gray.

Process Flow
  • Pretreatment
    This involves the removal of oil, dust, and rust from the component surface. It also creates a corrosion-resistant phosphate coating or chromate conversion coating to improve coating adhesion. Typical pretreatment steps include degreasing, rust removal, phosphating (or chromating) and passivation.
  • Electrostatic Powder Coating
    Using electrostatic attraction, the powder coating is evenly applied to the surface of the component.
  • Curing
    The coated component is placed in an oven at approximately 200°C for 20 minutes, allowing the powder to melt, level, and cure into a durable protective coating bonded to the surface.

Powder coating is suitable for a wide range of conductive metals including carbon steel, iron, galvanised steel, and cast steel.

  • Wall Thickness
    Components with wall thicknesses of 0.5 mm and above can be processed. For thin-wall parts, curing parameters are carefully controlled to minimize distortion.
  • Size
    Suitable for applications ranging from small hardware components to large equipment frames, enclosures, and steel structures, with a maximum linear dimension of 2.5 m.
  • Weight
    Suitable for both light and heavy-duty welded components, with weights ranging from 1 kg to 300 kg.
  • Corrosion Resistance
    Powder coating provides excellent corrosion protection and is commonly used on our CO₂ welded components.
Why Choose HCPC?
Why Choose Huacheng
  • More than 30 years of manufacturing and export experience, with extensive knowledge of international logistics and industry-specific technical standards.
  • Full support from tooling design and sample development through to high-volume production, precision machining, and surface treatment.
  • A strict ISO 9001 quality management system, backed by CMM (coordinate measuring machine) inspection and non-destructive testing (MT, RT, PT).
