Aluminum Casting

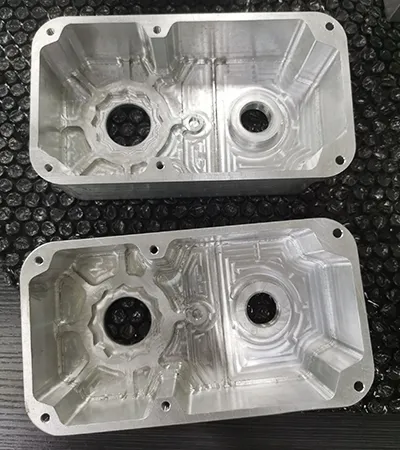

  • Aluminum HousingAluminum Housing
    Process: CNC Machining
    Material: ADC12
    Dimensions: 260*120*80 mm
    Weight: 1.3 kg

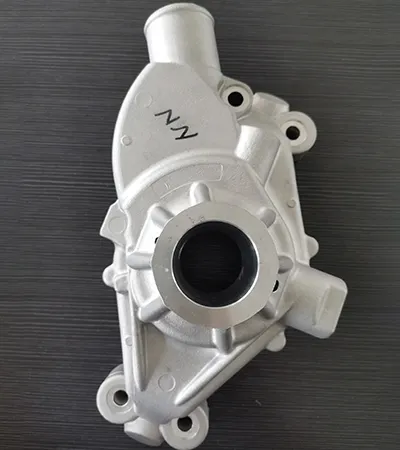

  • Water Pump HousingWater Pump Housing
    Process: Gravity Casting
    Material: A356
    Dimensions: 280*160*60 mm
    Weight: 2.0 kg

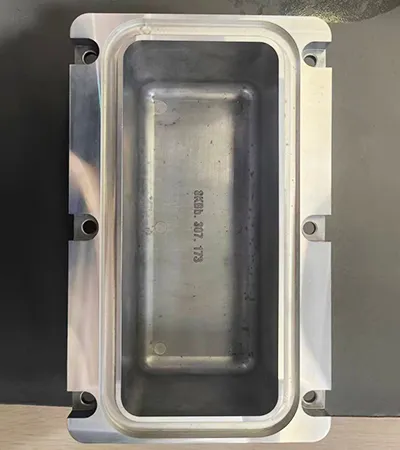

  • Aluminum CoverAluminum Cover
    Process: High-Pressure Casting
    Material: ZL101
    Dimensions: 200*80*60 mm
    Weight: 1.7 kg

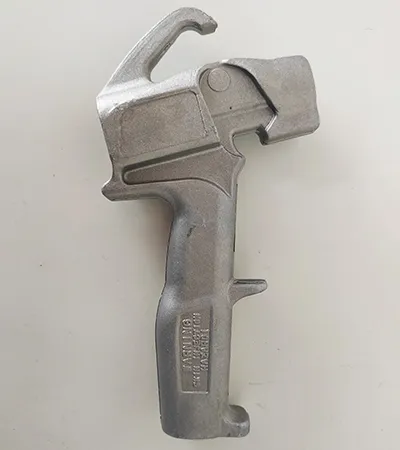

  • Spray Gun BodySpray Gun Body
    Process: Low-Pressure Die Casting
    Material: 7075
    Dimensions: 120*80*35 mm
    Weight: 0.45 kg
Contact Us
Material Range
Material Types
  • Material Standards: U.S. and Chinese aluminum alloy standards
  • Material Grades: A356, B413, A360, A383, ZL101, ZL102, ZL104, ADC12, 7075, and 6061
Specification Range
  • Individual Part Weight: 0.2 kg to 50 kg
  • Minimum Wall Thickness: 3 mm
Manufacturing Capabilities

For aluminum parts of varying size, weight, and finish, we generally use two methods:

  • Gravity casting: for parts with wall thickness above 6 mm, up to 50 kg per piece.
  • High- and low-pressure casting: for parts with wall thickness down to 3 mm, weighing 0.2 kg to 50 kg per piece.
Why Choose HCPC?
Why Choose Huacheng
Huacheng brings over 30 years of metal parts manufacturing experience, supported by integrated casting, forging, and precision machining capabilities. Our manufacturing platform combines silica sol investment casting, sand casting, forging, welding, stamping, and CNC machining, backed by 95 processing machines, advanced inspection equipment, and a quality team of more than 60 inspectors. Certified to ISO 9001, IATF 16949, CE/PED, and other international standards, we manage the entire process from drawing review and process engineering to sample development, production, inspection, and delivery. This makes us well suited for metal parts projects requiring complex geometries, tight tolerances, and multiple manufacturing processes.
