Stainless Steel Casting

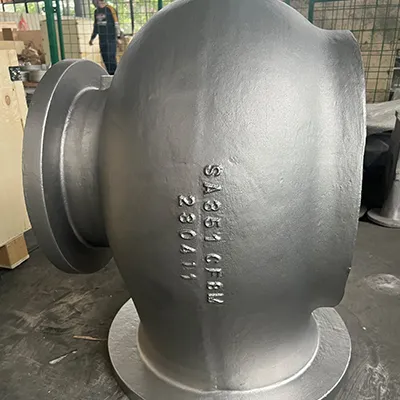

  • Large Valve BodyLarge Valve Body
    Material: 316
    Size: 1200 × 700 × 500 mm
    Weight: 230 kg

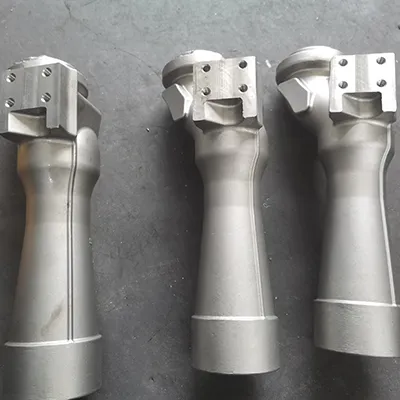

  • Exhaust PipeExhaust Pipe
    Material: 304
    Size: Ø120 × 240 mm
    Weight: 11 kg

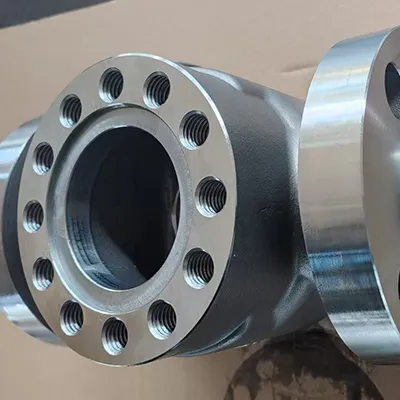

  • Three-Way Valve BodyThree-Way Valve Body
    Material: 316
    Size: 300 × 240 × 200 mm
    Weight: 21 kg

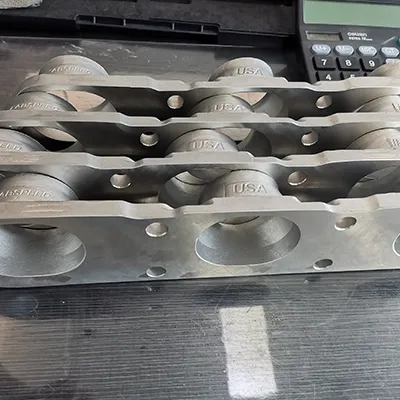

  • FittingFitting
    Material: 304
    Size: 180 × 35 × 30 mm
    Weight: 0.6 kg
  • Wheel HubWheel Hub
    Material: 304
    Dimensions: Ø1650*340 mm
    Weight: 170 kg

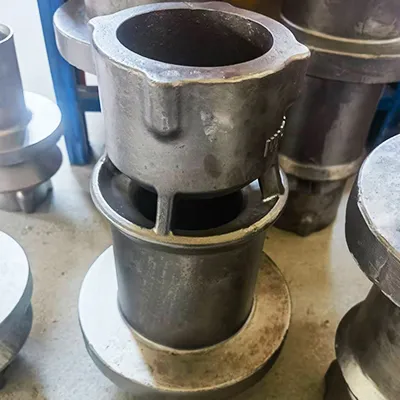

  • Pump BodyPump Body
    Material: 17-4
    Dimensions: Ø240*410 mm
    Weight: 28 kg

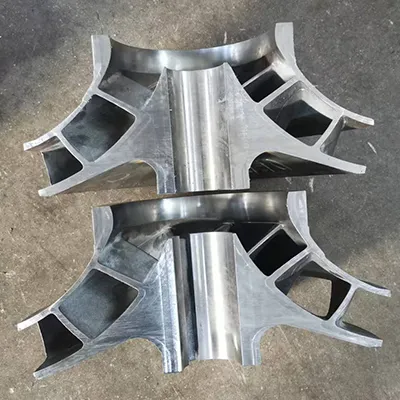

  • ImpellerImpeller
    Material: CA6NM
    Dimensions: Ø320*130 mm
    Weight: 24 kg

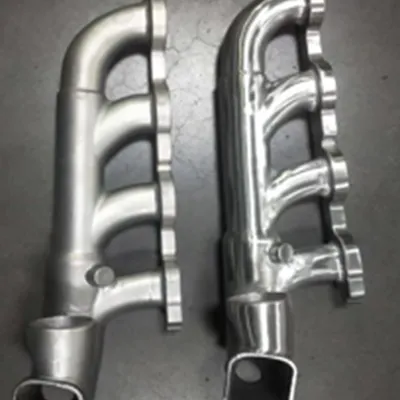

  • ManifoldManifold
    Material: 304
    Dimensions: 340*220*180 mm
    Weight: 7.8 kg
Contact Us
Material Range
Material Types
  • Types
    Austenitic, martensitic, precipitation-hardening, and duplex stainless steels
  • Material Grades
    U.S. standard grades including CF8, CF8M, CF3M, and 17-4PH; German standard grades including 1.4408, 1.4404, and 1.2884; and Japanese standard grades including SUS304 and SUS316.
  • Specification Range
    Individual part weight: 0.01 kg to 1,500 kg
    Size Range: 20 mm to 1,500 mm
    Wall thickness: greater than 3 mm
Manufacturing Capabilities

To meet different requirements for component size, weight, and surface finish, we offer two manufacturing processes:

  • Silica Sol Investment Casting
    This process is suitable for producing parts weighing 0.01 kg to 80 kg, with surface roughness of Ra 3.2 to 6.3 and dimensional accuracy of CT4 to CT6.
  • Resin Sand Casting
    This process is suitable for producing parts weighing 20 kg to 2,000 kg, with surface roughness of Ra 6.3 to 12.6 and dimensional accuracy of CT9 to CT10.

Our 95 CNC machines handle castings across a wide range of weights and materials to meet customer drawings and application requirements. The lineup includes Mazak CNC lathes, three-, four-, and five-axis machining centers, and turn-mill centers, delivering the dimensional precision each part demands.

Why Choose HCPC?
Why Choose Huacheng
Huacheng brings over 30 years of metal parts manufacturing experience, supported by integrated casting, forging, and precision machining capabilities. Our manufacturing platform combines silica sol investment casting, sand casting, forging, welding, stamping, and CNC machining, backed by 95 processing machines, advanced inspection equipment, and a quality team of more than 60 inspectors. Certified to ISO 9001, IATF 16949, CE/PED, and other international standards, we manage the entire process from drawing review and process engineering to sample development, production, inspection, and delivery. This makes us well suited for metal parts projects requiring complex geometries, tight tolerances, and multiple manufacturing processes.
